Metatab

Metadata for Mortals

Metatab stores metadata in a spreadsheet, alongside data, ensuring that the metadata is easy to create, easy to read, and cannot be separated from the data.

Metatab is a way of writing and storing metadata in the same spreadsheet as a dataset. Because it uses a tool every user already has — a spreadsheet — it is much simpler than documenting metadata in XML or JSON, resulting in more public datasets being properly documented. Metadata is easily read by people and can be programmatically converted to machine formats like JSON, so, with a spreadsheet extension, metadata can be validated while users enter it, and the metadata allows for sophisticated automatic processing.

The Metatab system includes:

  • A specification for how to write standard metadata elements in a tabular format
  • Spreadsheet extensions that help users create valid metadata
  • A web service that supports the spreadsheet extensions
  • Code libraries for parsing and manipulating Metatab data

The core of the project is a tabular data format, called the Structured Tabular Format that allows complex information to be represented in a simple, readable way in a spreadsheet. Using Metatab, a data producer can open a dataset in a spreadsheet, add in the Metatab extension, and quickly create valid metadata that conforms to standards. After publication, Data consumers can read and understand the metadata with no training and no additional tools.

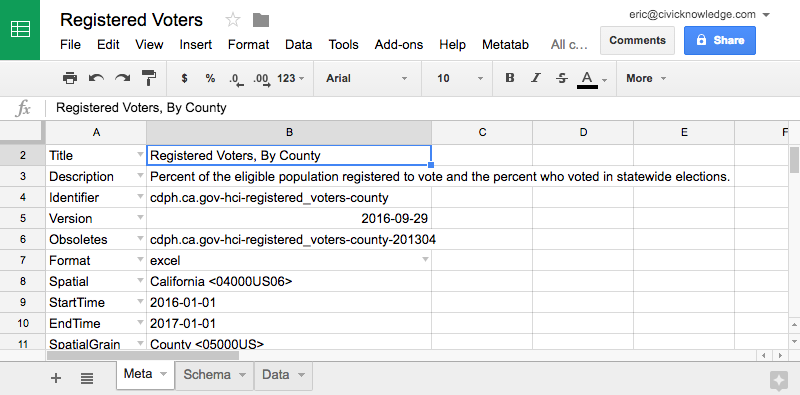

Here are two examples, one in a Google spreadsheet and another in Excel.

Get Metatab

The Metatab project is just getting started, and we need your help.

  • Data Producers. We’re looking for government agencies who produce public data to provide input on their data workflows and other requirements.
  • Data Consumers. If you use public data and would like better metadata, knowing what you need will help us get the project funded.

For more information, contact: Eric Busboom.

Metadata Shouldn’t Be Hard

Most of the time, metadata is hard, so most public data producers don’t bother with it. Standard metadata, like Dublin Core, has easy-to-remember metadata terms and elements, but linking it to a file involves writing what most users consider cryptic formats, like RDF, XML, or JSON. Metadata uses standard Dublin Core metadata elements, but allows users to read and write them in a very familar, readable format.

Compare a typical Metatab definition of two metadata elements with the equivalent metadata in RDF:

Tabular Metadata

property value
Title An Example Data bundle
Title.language en
Description This data bundle is an example of how simple a data bundle can be.

RDF Metadata

<?xml version="1.0"?>
<!DOCTYPE rdf:RDF SYSTEM
 "http://dublincore.org/2000/12/01-dcmes-xml-dtd.dtd">
<rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
         xmlns:dc="http://purl.org/dc/elements/1.1/">
  <rdf:Description >
    <dc:title>An Example Data bundle</dc:title>
    <dc:description xml:lang="en">This data bundle is an
    example of how simple a data bundle can be.</dc:creator>
  </rdf:Description>
</rdf:RDF>

Easier metadata means more metadata, so allowing public data producers to manage metadata in simple, comprehensible formats with tools they already have will result in more public data being fully documented.

Workflow

Using Metatab is simple. A typical public data workflow with Metatab would involve:

  • A user opens a spreadsheet of data, then adds the Metatab extension to the spreadsheet.
  • The Metatab extension creates new worksheets for metadata and a schema, also known as  a data dictionary. Metatab reads the data and automatically generates the data dictionary.

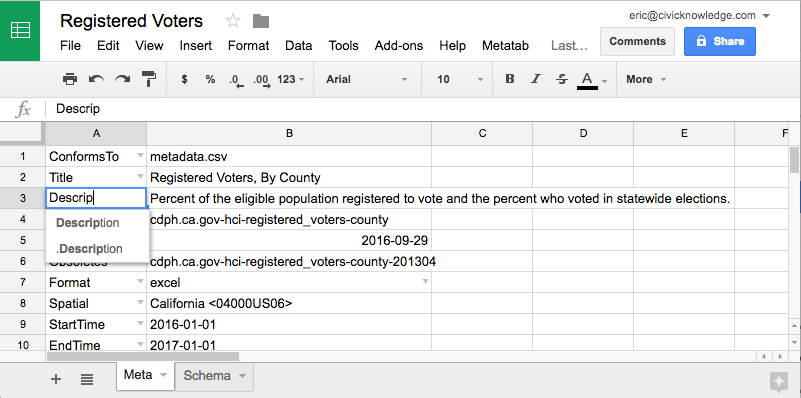

  • As the user types, the Metatab extension validates the user’s entries, ensuring the metadata is always valid.
  • When the user is finished, the file can be saved directly to a data repository like Socrata or CKAN.

Better Automation

Because Metatab is sensible to both humans and computers, it’s easy for people to write metadata that programs can use to alter data. After saving Metatab-formatted spreadsheets, datasets can be automatically uploaded to data repositories like Socrata or CKAN, including all of the metadata. Datasets can be properly routed for approval using workflow tools like Screendoor. Programs can understand what data columns mean and automatically geocode addresses or turn census codes into place names.

Always Correct

The Metatab spreadsheet extension — for both Excel and Google Docs — validates metadata as the user types to ensure that it is always correct. By including a ConformsTo element, users can set the standard used to validate the metadata. By creating a ConformsTo document (which is also a Metatab format file) and making it available on the web, organizations can create their own extensions to metadata elements.

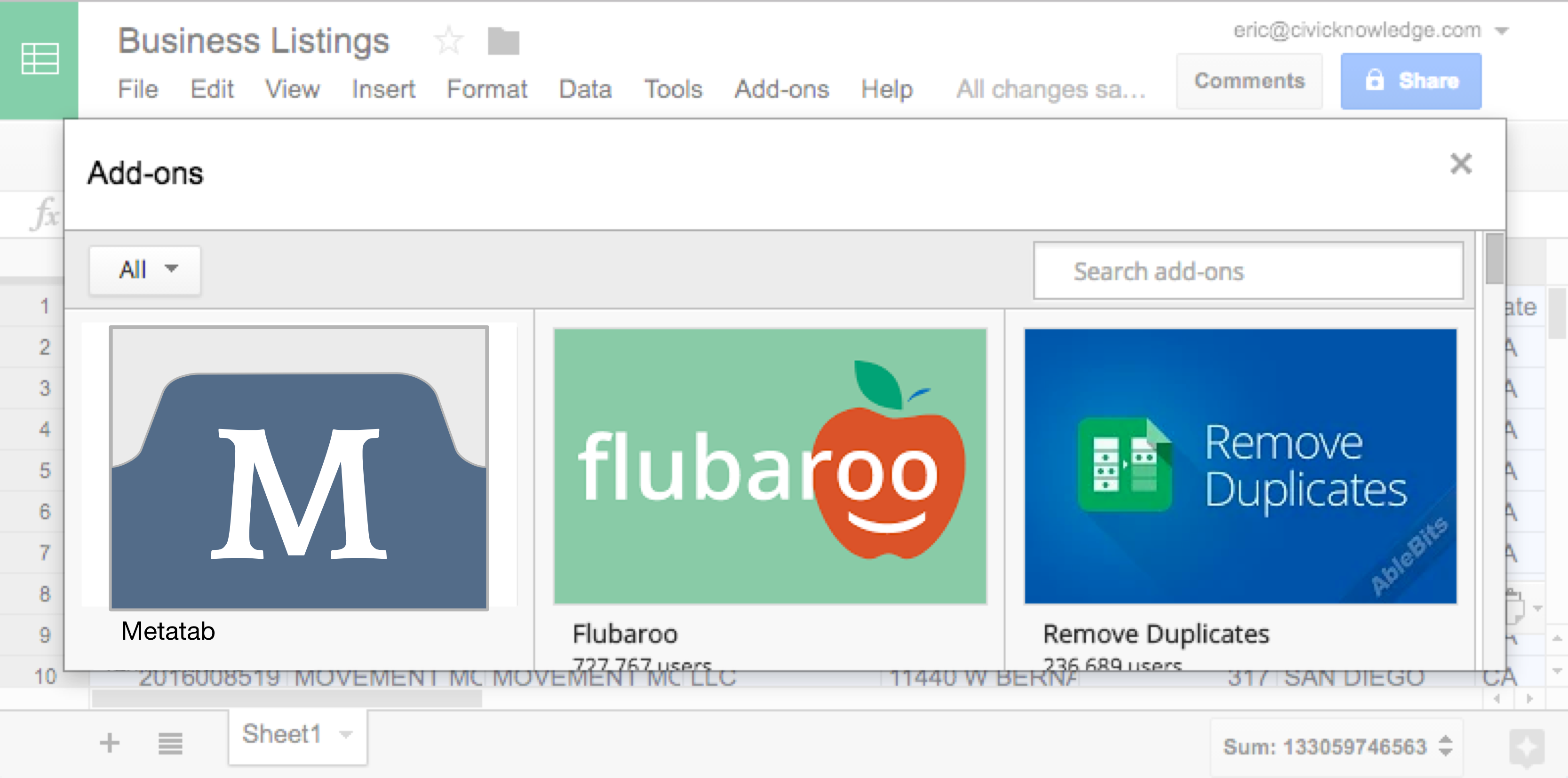

Install: Python Javascript or Google

Metatab is currently available as a Python module, a Javascript module for node, or an Add-On for Google Spreadsheets. We’re working on code for PHP and Java.

Join the Project

Metatab is an early stage project. The specifications for the Metatab format are nearly complete, and we’re writing the spreadsheet extensions, but we’ll need your help, particularly for providing additional requirements, refining the design, testing, and piloting the early deployments. If you or your organization either produces public data or consumes public data, we’d like to talk to you about your needs. We’re particularly interested in working with state and county health agencies and the public and private organizations that use public health data.

If your organization would benefit from better metadata, please contact the project manager, Eric Busboom, at eric@civicknowledge.com or 619-363-2607.
